15mm lead screw slider stepper motor features:
This is a stepper motor with a moving slider with a bracket and lead screw.
The motor slider is metal, and customers will choose metal sliders when they have special use environments and requirements. In addition, we also have plastic sliders for customers to choose.
Since the output shaft of this motor is a lead screw, during the rotation of the lead screw, the lead screw will drive the slider to move back and forth (forward and backward movement). This makes it easy to provide actions such as forward and backward. In addition, it can precisely control the speed, the number of revolutions, etc. It also determines the moving speed of the slider, and can precisely control the moving position. The positioning accuracy can be controlled less than 0.05mm.
The input part of the motor is a connecting line, but it can be changed into FPC, PCB and other forms according to customer needs.
The characteristics of this motor are widely used in beauty equipment, medical equipment, vending machines, rapid testing and other fields.
If you need this motor, please feel free to contact us.
rpose of this product:
1) vending machine
2) Optical instruments
3) Precision medical devices
4) beauty equipment
Other precise control application
15mm Slider Stepper Motor Specifications:
| Model No. | SM15-80L-T |
| Motor type | Linear stepper motor |
| Phase No. | 2 phases |
| Step angle | 18° |
| Phase resistance | 15±10% Ohm/phase(20℃) |
| Excitation method | 1-2 Phases Excitation |
| Rated voltage | 5 - 12 V DC |
| Lead screw type | M3*0.5Pitch thread |
| Stroke | 80mm |
| Pull-out thrust | Over 500 gf at 700 PPS |
| Max response frequency | Over 1200 PPS |
| Max Starting frequency | Over 900 PPS |
15mm 80mm stroke metal slider stepper motor drawing:

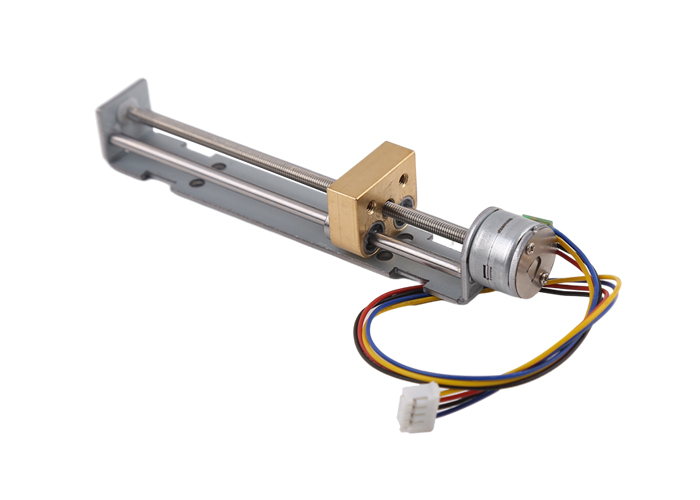

15mm metal slider stepper motor product display:
Customers can customize content:
1. The outer diameter of the motor can be selected according to the customer's use environment and space strength. We have different sizes such as 6mm 8mm 10mm 15mm 20mm 25mm for customers to choose.
2. The position of the motor air outlet can be adjusted freely within a range of 360 degrees, so as to achieve the best state and meet the installation requirements. At the same time, the connector can also choose lead, PCB, FPC bare pins.
2. The effective stroke of the motor can be customized within a certain range according to customer requirements, which mainly considers the diameter and length of the lead screw.
Usually the maximum length of M2 screws can reach 50mm, M3 screws can reach 100mm, and M4 screws can reach 100mm. We can also do 150mm. The diameter of the lead screw used by the micro motor is too large and the power consumption is also very large, so the customer must consider comprehensively when selecting the motor.
4. The material of the slider is generally plastic, which is easier to form.
If the customer has special use environment and requirements, the slider can also use metal parts.
Of course, the cost of metal will be higher than that of plastic, which needs to be determined according to the customer's requirements for the shape and size of the slider.
